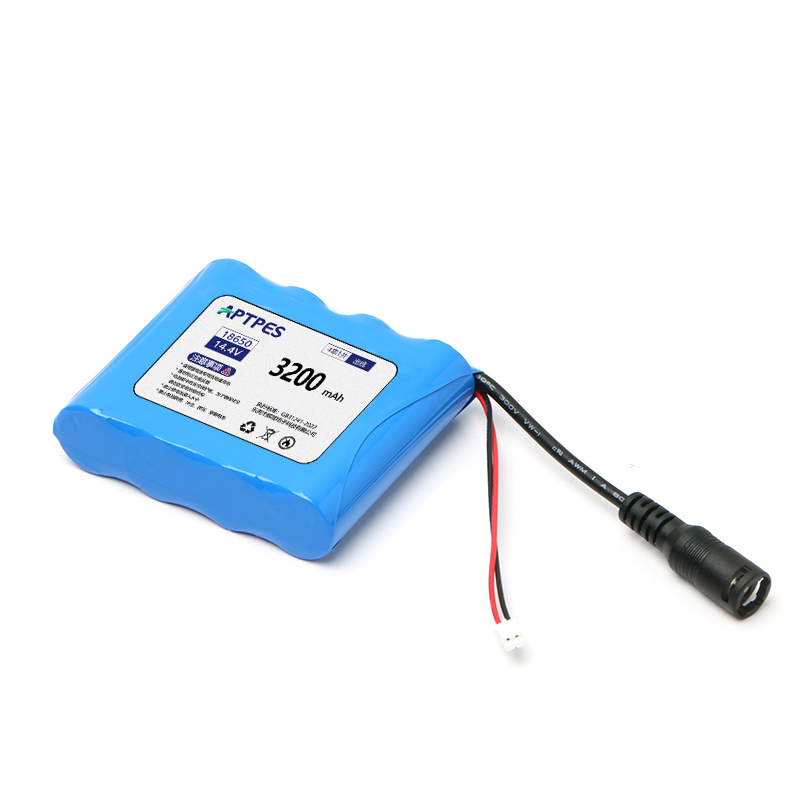

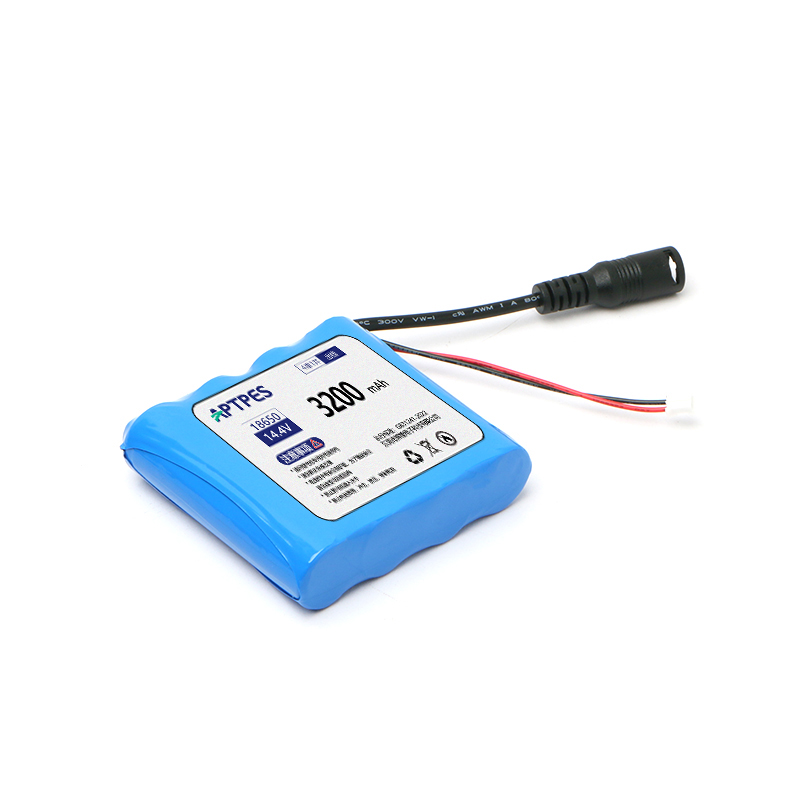

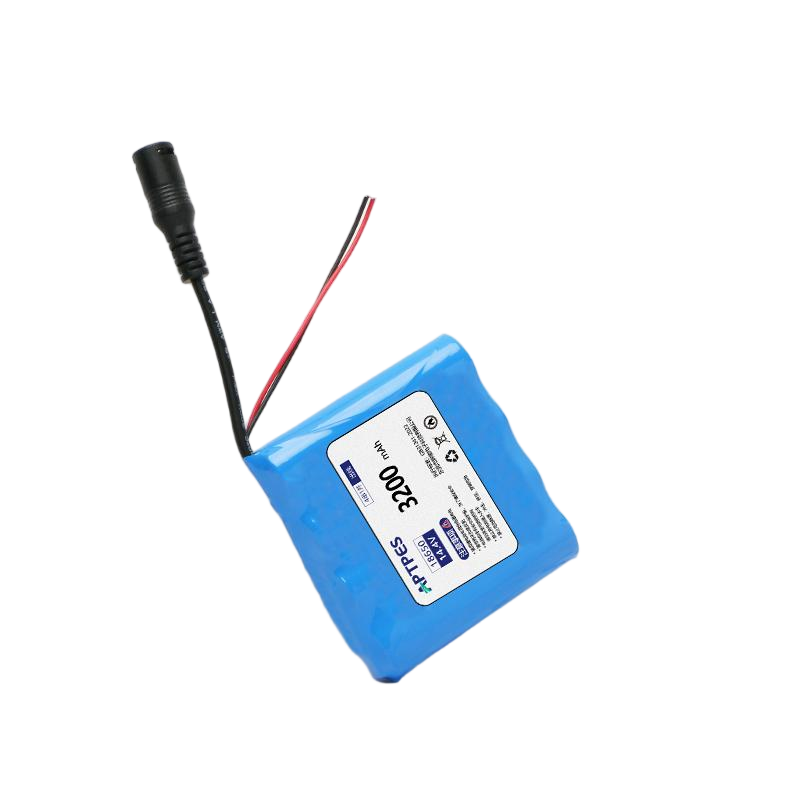

This product is a high-performance, safe, and reliable cylindrical lithium-ion battery pack, utilizing classic 18650 cells as its basic unit. Through a precise "4 series 1 parallel" (4S1P) configuration, the energy of the cells is efficiently integrated, resulting in a stable 14.8V nominal voltage output. The battery pack features a built-in high-quality intelligent protection board and comes standard with convenient external output wires and terminals, enabling easy plug-and-play functionality. Its compact size (19*68*75mm) allows it to easily fit inside various devices with strict space requirements, making it an ideal power solution for numerous portable electronic devices and small to medium-power equipment.
Product Advantage
High-Performance Power Core: Utilizes high-quality lithium-ion cells with high energy density, providing long-lasting and stable power output to meet the demands of extended device operation.
Multiple Safety Protections: Built-in intelligent protection board (PCB) features multiple protection functions against overcharging, over-discharging, overcurrent, short circuits, and temperature fluctuations, eliminating the risk of abnormal battery use and ensuring safety and reliability.
Ready to Use, Convenient Connection: All welding and assembly are completed at the factory, and the output wires and terminals are already connected (terminal types can be customized according to customer needs), saving users the trouble and risk of self-assembly and greatly improving production efficiency.
Robust Structure, Exquisite Craftsmanship: Features a high-temperature resistant, flame-retardant casing, securely spot-welded cells, and a compact and stable overall structure with excellent shock resistance, effectively extending its lifespan.
Environmentally Friendly and Energy-Saving: Complies with RoHS and other environmental directives, is pollution-free, and can be recharged hundreds of times, making it economical and environmentally friendly.
Technical Parameters
| Battery Cell Type： | Standard 18650 Cylindrical Lithium-ion Battery Cell |
| Configuration: | 4 Series 1 Parallel (4S1P) |
| Nominal Voltage: | 14.8V |
| Nominal Capacity: | 3200mAh (0.2C discharge) |
| Energy: | Approximately 47.4Wh |
| Charging Voltage: | 16.8V (±0.05V) |
| Discharge Cut-off Voltage: | 10.0V (Controlled by protection board) |
| Standard Charging Current: | 0.5C (approximately 1600mA) |
| Maximum Charging Current： | 1C (approximately 3200mA) |
| Standard Discharge Current： | 1C (approximately 3200mA) |
| Maximum Continuous Discharge Current: | Depends on cell performance and protection board settings (typically 5-10A) |

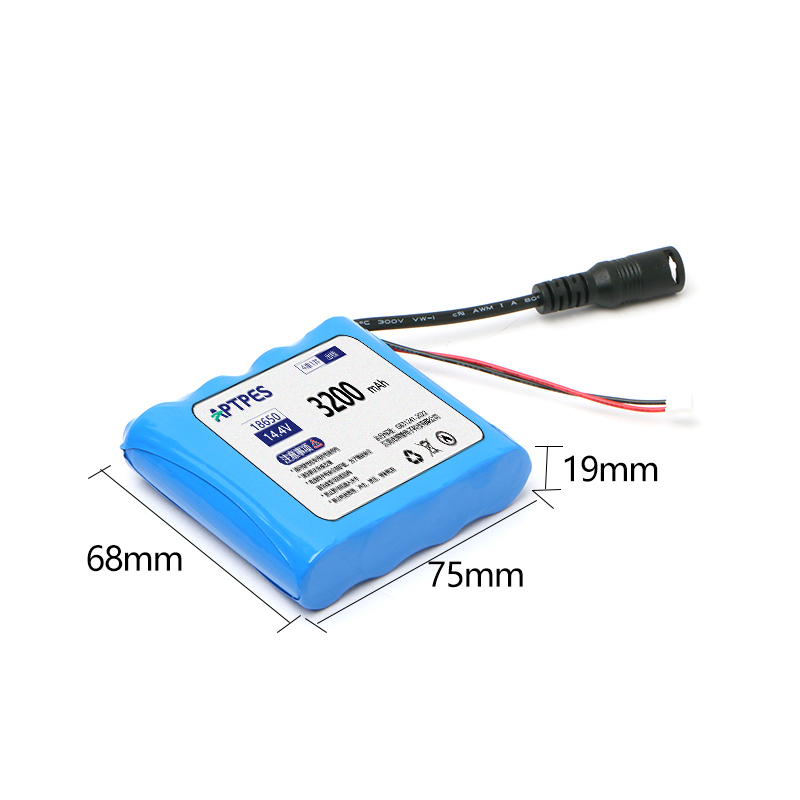

| Dimensions (Length x Width x Height): | Approximately 19mm * 68mm * 75mm (including casing and terminals, dimensional tolerance ±2mm) |
| Weight: | Approximately 180g (for reference only, subject to actual product) |
| Protection Functions: | Overcharge, over-discharge, overcurrent, short-circuit protection |
| Output Interface: | Standard red and black wires and terminals (e.g., PH2.0, XT30, etc., specific model shown in diagram or description) |
| Operating Temperature: | Charging: 0℃ ~ +45℃ / Discharging: -20℃ ~ +60℃ (Recommended to use at 0~40℃ for optimal performance) |
| Storage Temperature： | -20℃ ~ +45℃ (Recommended to store in a cool, dry place; for long-term storage, maintain a half-charged state) |
Product Uses
This battery pack is widely used in various devices and fields requiring a stable and portable power source, such as:
Portable instruments: Measuring equipment, testing instruments, data loggers.
Digital electronic products: High-end flashlights, photographic fill lights, stabilizers, and some drone components.
Power tools: Small screwdrivers, precision drills, engraving machines.
Robots and models: Power supply for receivers or servos in small educational robots, model aircraft, and model boats.
Backup power supplies: Backup power for small monitoring equipment, mobile routers, and security alarm devices.
DIY and maker projects: Providing a reliable power source for various electronic projects.
 |  |  |  |
Product Precautions
Dedicated Charger: Only use a lithium-ion battery charger with matching voltage and current parameters (16.8V). Direct charging with non-regulated power supplies or lead-acid battery chargers is strictly prohibited, as this may cause fire or explosion.
Prohibited Actions: Do not disassemble, crush, or puncture the battery pack. Do not short-circuit the battery (positive and negative terminals touching). Do not place the battery in fire or high-temperature environments (such as inside a car exceeding 60°C).
Operating Environment: Avoid using and storing the battery in extreme temperatures (too high or too low), humid, dusty, or corrosive gas environments.
Installation and Fixing: When installing the battery pack in equipment, ensure it is securely fixed to prevent shaking. The output wires should be protected from being cut by sharp objects or excessively bent.
Handling Abnormalities: If the battery pack casing is severely deformed, bulging, leaking, emitting an odor, or experiencing an abnormal temperature increase, immediately stop using it and place it in a safe, open area away from flammable materials. Contact a professional for assistance.
Disposal: After the battery reaches the end of its lifespan, do not dispose of it arbitrarily. It should be handled by a designated battery recycling agency in accordance with local regulations.
FAQ
Q1: Can this battery pack directly replace the old battery in my device?
A: Yes, but three key conditions must be met: 1) The voltage must be exactly the same (is the nominal voltage of your old battery 14.8V/14.4V?); 2) The physical dimensions must fit (please check if your battery compartment dimensions are greater than or equal to 19*68*75mm); 3) The output terminal interface type must match. It is recommended to carefully check the parameters of your original battery before replacement.
Q2: What is the specific function of the battery pack's protection board?
A: The protection board is the "safety guard" of the battery. It monitors the battery status in real time: it automatically cuts off charging when the voltage reaches 16.8V (overcharge protection); it automatically cuts off the output when the voltage discharges to approximately 10.0V (over-discharge protection); and it will quickly cut off the circuit when the output current exceeds the set safety value or in case of an accidental short circuit between the positive and negative terminals (overcurrent/short circuit protection), thus protecting the battery and the connected equipment.
Q3: How do I charge this battery pack? How long does it take to charge?
A: Please be sure to use a lithium-ion battery charger with an output voltage of 16.8V and a recommended output current of around 1.6A (0.5C). Using a standard 1.6A charger, it takes approximately 2-3 hours to fully charge a completely depleted battery. Using a higher current charger (such as 3A) will shorten the charging time, but may slightly affect the battery's cycle life.
Q4: Can the battery pack be left connected to the device for a long time?
A: If the device itself has a physical power switch and the standby current is very low (microampere level) when switched off, it is acceptable for short periods. However, long-term connection (such as several weeks or more) is not recommended. For devices without a physical switch or with a high standby current, long-term connection may lead to over-discharge and damage the battery. When not in use for extended periods, it is recommended to remove the battery pack from the device and store it separately in a partially charged state.
Q5: What is the lifespan of the battery pack?
A: Battery life is usually measured in terms of charge and discharge cycles. Under normal operating conditions (ambient temperature, standard charging and discharging current), this battery pack can withstand approximately 500 complete charge-discharge cycles while maintaining more than 80% of its initial capacity. Actual lifespan may be affected by usage habits and ambient temperature.
Important Note: To ensure optimal performance and safety, please carefully read the above instructions and use this product correctly. For any technical questions, please feel to contact our technical support team.
