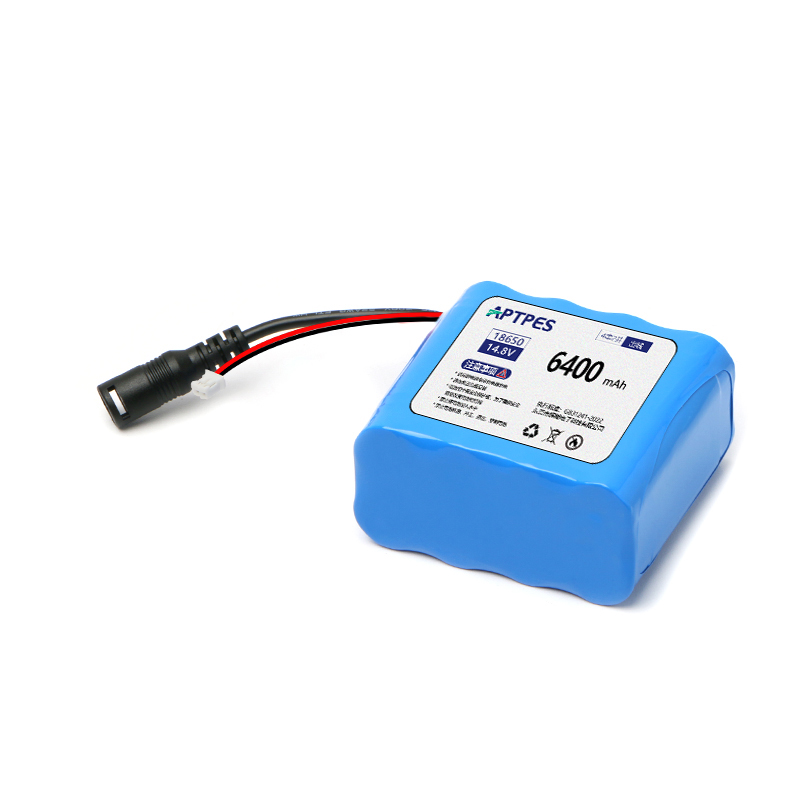

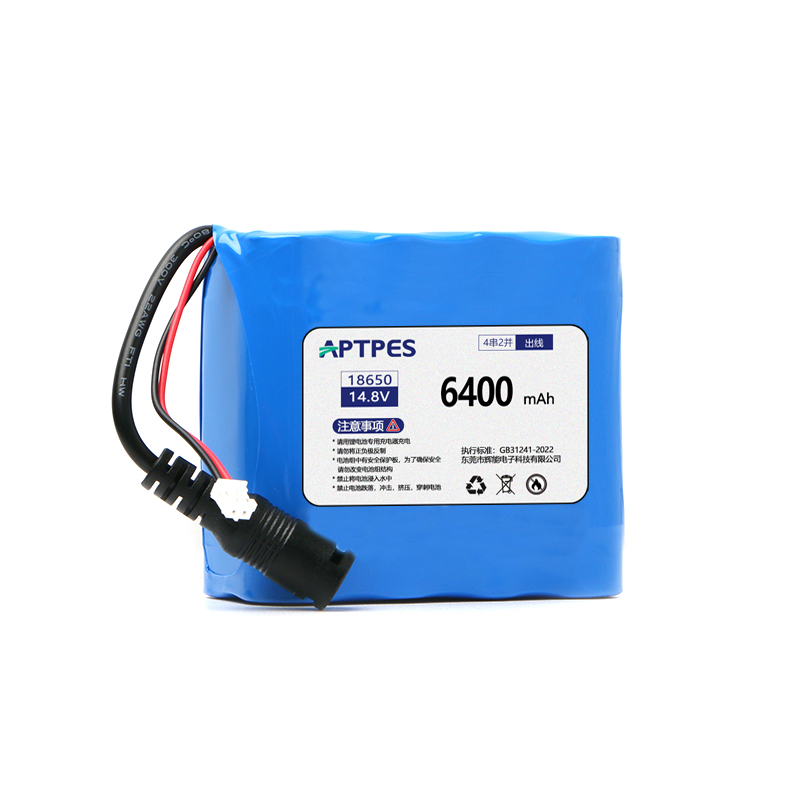

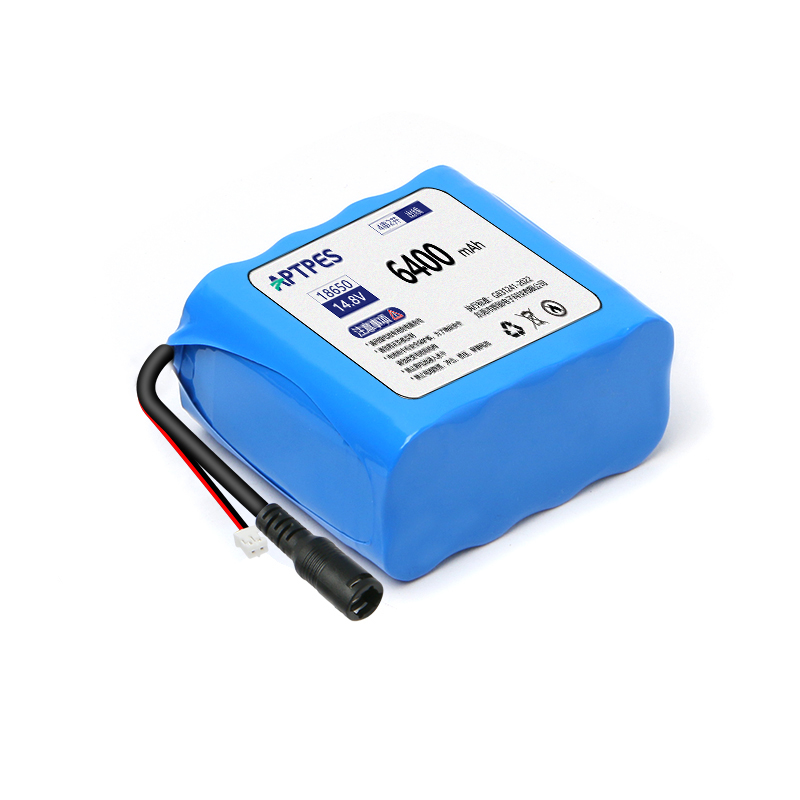

Engineered specifically for critical healthcare applications, this 14.8V 6400mAh lithium-ion battery pack serves as the reliable power core for portable ultrasound machines and hematoma removal devices. Constructed with premium, industry-standard 18650 cells in a highly efficient 4-series 2-parallel (4S2P) configuration, this power module delivers an exceptional balance of compact form and sustained energy output. Measuring precisely 38mm × 68mm × 75mm, the unit features a smooth, tightly wrapped high-toughness heat-shrinkable film that offers a secure, vibration-resistant grip while protecting internal components from clinical environments. Every pack undergoes rigorous 100% factory aging tests and automated laser welding, ensuring zero-fault operation during sensitive diagnostic or surgical procedures. Complete with a pre-integrated intelligent protection circuit board (PCB) and precisely soldered output wires with customizable terminals, this battery provides immediate, plug-and-play functionality. It is the definitive energy solution for medical equipment manufacturers requiring uninterrupted, stable 14.8V power, minimizing downtime and maximizing clinical efficiency.
Exceptional Energy Density & Extended Cycle Life: Utilizing Grade-A 18650 dynamic lithium-ion cells, this pack achieves a substantial 6400mAh capacity within a strictly confined footprint. Under standard operating conditions, the battery retains over 80% of its original capacity even after 500 complete charge-discharge cycles. This longevity drastically reduces the frequency of battery replacements for medical facilities, lowering long-term maintenance costs for ultrasound and hematoma removal equipment.
Industrial-Grade Smart BMS Protection: The pre-installed intelligent Battery Management System acts as a vigilant safeguard for high-value medical electronics. It delivers hyper-accurate, real-time monitoring to prevent overcharging, over-discharging, overcurrent, and short circuits. Furthermore, multi-point temperature control ensures the battery remains cool to the touch, eliminating thermal risks during prolonged diagnostic sessions.
Precision Manufacturing & Structural Integrity: Internally, high-temperature resistant insulating sheets meticulously isolate each cell. The connections are secured via fully automated laser welding technology, which guarantees exceptionally low internal resistance and a flawless, solid electrical pathway. The exterior is encapsulated in a resilient casing or heavy-duty shrink wrap, providing superior shock absorption against accidental drops in busy clinical settings.
Global Compliance & Export Readiness: Designed to facilitate smooth international trade, this battery architecture supports major global safety and aviation transport certifications, including UN38.3, CE, RoHS, MSDS, and IEC62133. This rigorous compliance empowers medical device manufacturers to confidently distribute their portable diagnostic tools across borders without regulatory friction.
Plug-and-Play Efficiency & End-to-End Customization: Arriving fully equipped with the protective board and specialized terminal leads, the battery eliminates complex in-house assembly. We offer comprehensive OEM/ODM services, allowing adjustments to wire lengths, terminal types (such as XT60 or custom DC connectors), and casing dimensions to perfectly match the unique structural cavities of your proprietary medical devices.
| Battery Cell Type： | Cylindrical 18650 Lithium-ion Battery |
| Configuration: | 4 Series 2 Parallel (4S2P) |
| Nominal Voltage: | 14.8V |
| Nominal Capacity: | 6400mAh |
| Charging Voltage: | 16.8V (±0.05V) |
| Discharge Cut-off Voltage: | 10.0V (Controlled by protection board) |
| Standard Charging Current: | ≤3200mA (0.5C) |
| Maximum Continuous Discharge Current: | 6400mA (Typical, subject to battery cell specifications) |

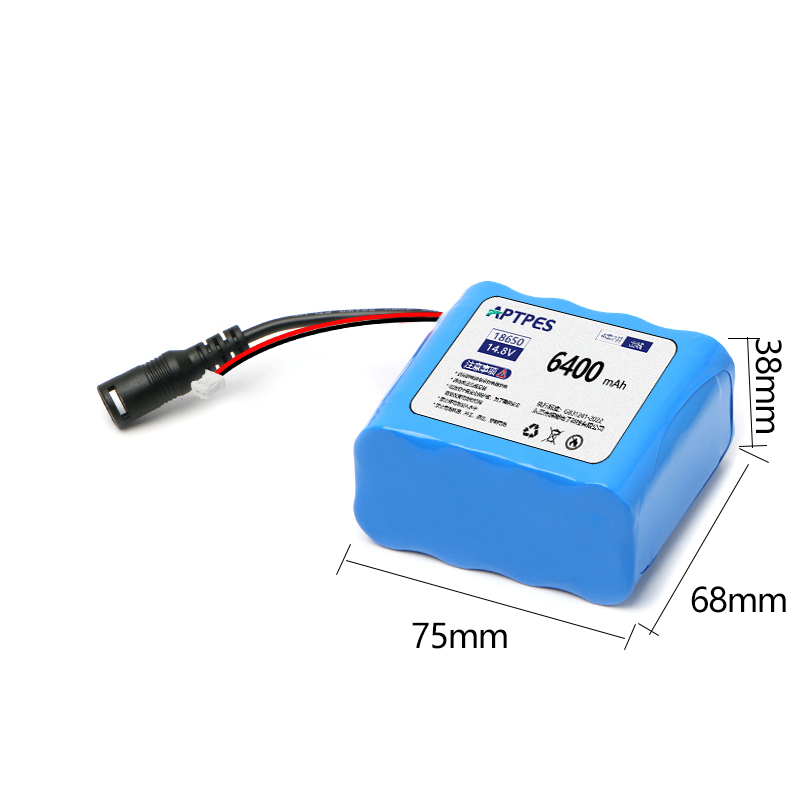

| Dimensions (Length × Width × Height): | Approximately 38mm × 68mm × 75mm (including protection board and wiring space) |

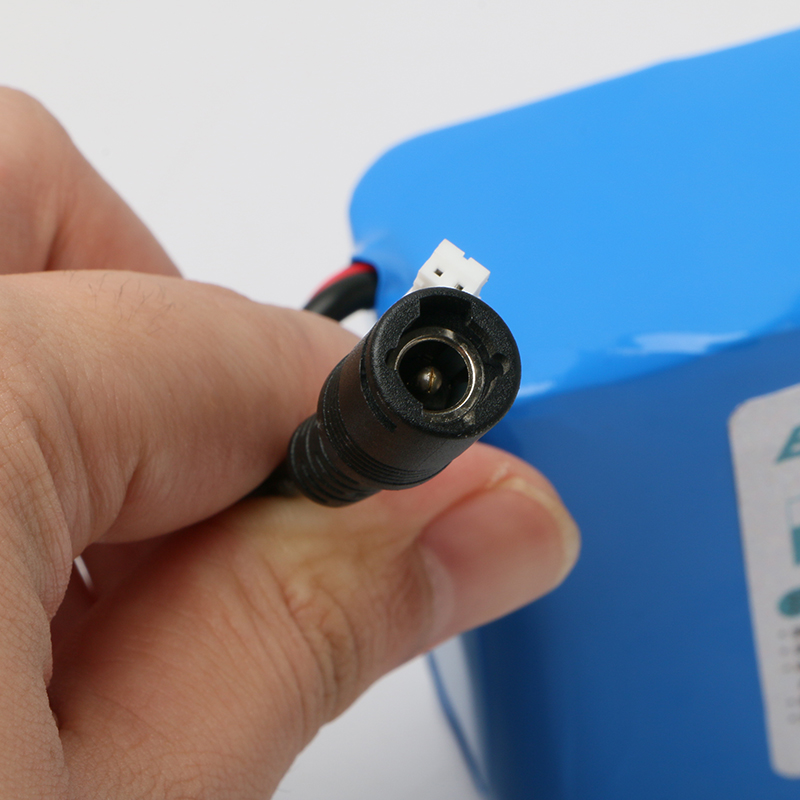

| Wiring Specifications: | Standard wires and terminals (e.g., XT60, Anderson, etc., customizable) |
| Protection Functions: | Overcharge, over-discharge, overcurrent, short circuit, temperature protection |
| Operating Temperature: Charging: | 0°C ~ +45°C; |
| Discharging: | -20°C ~ +60°C (Recommended) |
| Weight: | Approximately 450g (For reference only, subject to actual product) |
With its perfectly balanced 14.8V output, substantial 6400mAh capacity, and zero-interference power delivery, this lithium-ion battery pack is the premier choice for sophisticated portable equipment. While optimized for medical applications, its versatile and rugged design makes it highly effective across multiple demanding industries:
Advanced Medical Devices: Provides uninterrupted, clean power for portable ultrasound machines, hematoma removal devices, patient monitors, and mobile diagnostic stations, ensuring accurate readings and reliable surgical support.
Professional Power Tools: Delivers the high continuous discharge current (6400mA) required by cordless drills, angle grinders, and electric saws to maintain peak torque under heavy loads.
Mobile Broadcasting & Lighting: Powers portable photography lighting rigs, field monitors, and outdoor live broadcasting setups, offering hours of stable illumination and signal transmission.
Robotics & Unmanned Systems: Serves as a lightweight, high-energy core for educational robotics, racing drones, and small automated ground vehicles (AGVs) requiring rapid power deployment.
Electric Mobility Solutions: Acts as a dependable energy source for balance bikes, electric scooters, high-intensity bicycle lighting systems, and auxiliary power units.
Precision Instruments & DIY Projects: Ideal for surveying equipment, scientific research apparatus, radio-controlled models, and custom engineering projects where reliable voltage platforms are mandatory.
 |  |  |
 |  |  |
Strict Charging Protocols: To maintain optimal cell chemistry, exclusively utilize a dedicated lithium-ion balancing charger calibrated for a 16.8V maximum output. Deploying incompatible, non-balancing, or substandard chargers will compromise the battery's internal structure and void warranty protections.
Operational Prohibitions: Never short-circuit the output terminals. The battery must be protected from severe mechanical impacts, structural punctures, and direct exposure to open flames. Strictly avoid initiating charge or discharge cycles in environments exceeding 60°C or falling below -20°C to prevent irreversible capacity loss.
Secure Installation Guidelines: During device integration, verify that all wires and custom terminals (e.g., XT60) are firmly seated to prevent electrical arcing or intermittent power drops. The pack must be mechanically anchored within the equipment housing to withstand operational vibrations and prevent accidental detachment.
Long-Term Storage & Maintenance: If the equipment will remain inactive for extended periods, discharge or charge the battery to approximately 50% capacity. Store the unit in a climate-controlled, dry environment away from direct sunlight. To preserve the cell's active materials, perform a routine check and partial recharge every three months.
Responsible End-of-Life Disposal: As a high-density energy storage component, this battery must not be discarded in standard waste streams. Upon reaching the end of its functional lifespan, it must be surrendered to certified electronic recycling facilities in strict adherence to local and international environmental regulations.
A: Absolutely not. This advanced lithium-ion pack features a full-charge voltage threshold of 16.8V. It requires a specialized balance charger explicitly designed for 14.8V (4-series) lithium-ion configurations. Utilizing a standard 12V or incompatible charger will result in severe undercharging, potential damage to the internal BMS, and significant safety hazards.
A: We strictly adhere to nominal (minimum) capacity reporting. Following our rigorous 100% factory aging and capacity testing, the actual deliverable capacity of our dispatched units typically exceeds the 6400mAh baseline under standard testing parameters. This guarantees that your portable ultrasound or hematoma devices receive the exact, uninterrupted runtime expected for critical procedures.
A: The integrated industrial-grade BMS acts as the intelligent safety core of the power module. It continuously scans individual cell voltages and overall circuit currents. Should it detect anomalies such as overcharging, deep over-discharging, thermal spikes, or short circuits, the BMS instantly severs the electrical connection. This rapid response protects your high-value medical electronics from irreversible electrical surges.
A: Yes, we provide comprehensive end-to-end OEM/ODM customization. Recognizing that different medical devices have unique internal cavities, we can modify wire gauges, cable lengths, and install specific connectors (such as XT30, XT60, Anderson, or customized DC jacks). Our engineering team works directly with your procurement department to ensure perfect structural and electrical compatibility.
A: Built with premium Grade-A 18650 cells, this battery comfortably delivers 300 to 500 complete charge-discharge cycles while retaining over 80% of its initial capacity under standard 0.5C conditions. For enterprise buyers, our mature, scaled production lines guarantee stable lead times, flexible Minimum Order Quantities (MOQs), and dedicated long-term warranty support, ensuring your supply chain remains uninterrupted.
Disclaimer: This product is a high-density electrical component requiring professional handling. The manufacturer assumes no liability for direct or indirect damages arising from improper installation, unauthorized modification, or non-compliant charging practices. Technical specifications are subject to continuous improvement; please consult our engineering team for the most current data sheets.
