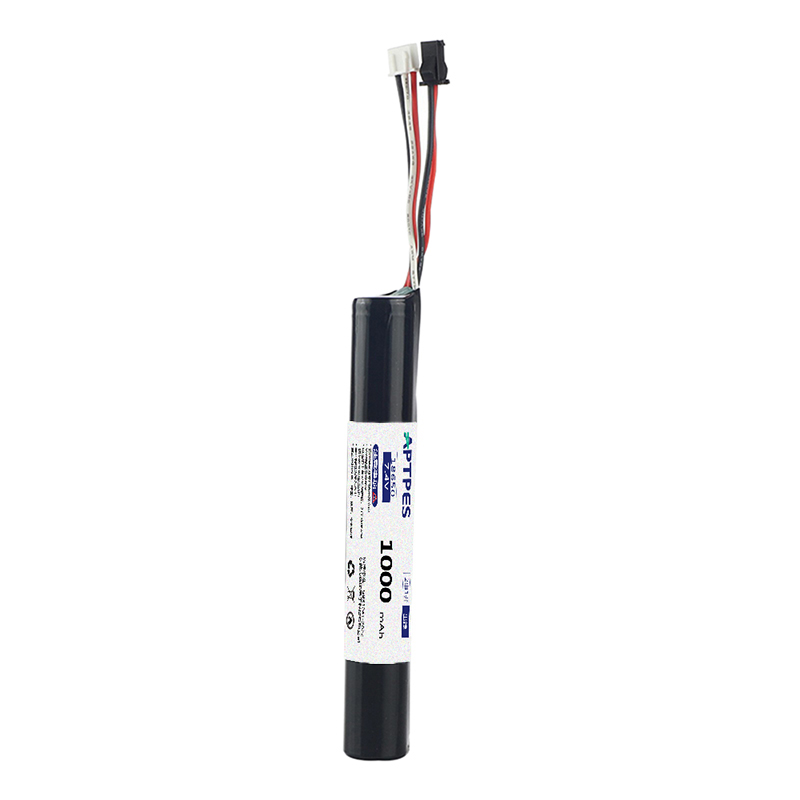

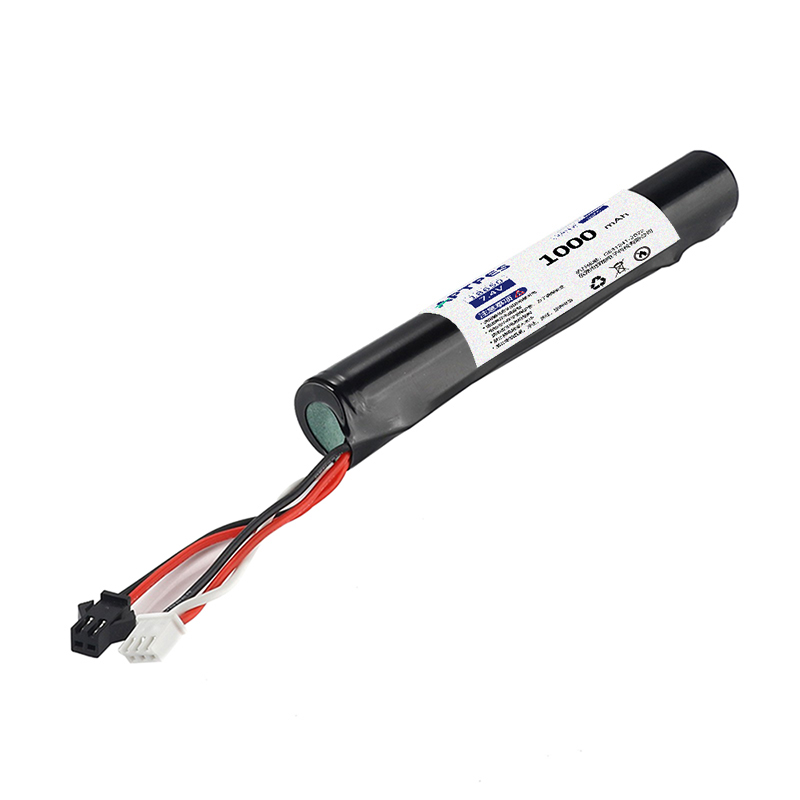

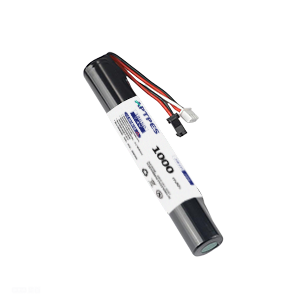

Engineered for demanding micro-electronics, this compact lithium-ion battery pack is meticulously assembled using premium 18650 cylindrical cells in a 2 series and 1 parallel (2S1P) configuration. The battery pack features a highly space-efficient cylindrical design, measuring a precise 18mm in diameter and 110mm in length. Weighing approximately 45 grams, it provides a dense, reliable power source without adding unnecessary bulk to handheld equipment. It integrates a dedicated, precision-calibrated protection circuit board and comes pre-fitted with flexible terminal wires, delivering a safe and ready-to-use standardized lithium-ion energy solution. Operating on a nominal voltage of 7.4V with a rated capacity of 1000mAh, this power module is specifically tailored for small electronic devices, electronic styluses, and IoT hardware that operate under strict spatial and weight limitations.
Advanced Security Architecture: Built-in high-performance protection board actively monitors the cells, providing multiple layers of defense including overcharge, over-discharge, overcurrent, and short circuit protection. This continuous monitoring ensures safe operation even during unexpected power fluctuations.
Space-Saving Compact Structure: The precise cylindrical shape and minimal footprint (Φ18mm × 110mm) greatly save internal space within device housings, making it exceptionally well-suited for embedded installation in narrow cavities like electronic styluses and scanner handles.
Lightweight Material Design: Encapsulated with durable yet lightweight shrink-wrap materials, the overall weight is kept to a mere 45g. This careful weight management is highly beneficial for reducing user fatigue in portable and handheld devices.
Exceptional Lifespan & Durability: Utilizes rigorously tested 18650 cells with excellent internal consistency. These cells exhibit no memory effect and an extremely low self-discharge rate, ensuring stable battery pack voltage and maintaining over 500 charge cycles while retaining strong performance during long-term storage.
Plug-and-Play Integration: All internal assembly, spot welding, and electrical testing are completed at the factory. The pack comes pre-configured with 80mm wires and pluggable terminals that offer a tactile, secure connection, eliminating the need for further soldering by the assembly team and lowering the application threshold.
Strict Quality Control & Consistency: Backed by a professional battery testing laboratory, our strict cell screening and capacity-grading processes ensure perfectly balanced performance after the series connection, significantly extending the overall operational lifespan of the pack.
Global Compliance & Certifications: Manufactured to meet stringent international safety and environmental standards, this battery pack is fully supported by CE, RoHS, UN38.3, and MSDS documentation, guaranteeing secure cross-border transport and smooth market entry worldwide.
| Battery Cell Model: | 18650 Cylindrical Lithium-ion Battery Cell |
| Configuration: | 2 Series 1 Parallel (2S1P) |
| Nominal Voltage: | 7.4V |
| Rated Capacity: | 1000mAh |
| Charging Voltage: | 8.4V (±0.05V) |
| Discharge Cut-off Voltage: | 6.0V |
| Standard Charging Current: | 0.5C (approximately 500mA） |
| Maximum Continuous Discharge Current: | 1C (approximately 1000mA) |
| Instantaneous Peak Discharge Current: | ≤2A (limited by protection board) |

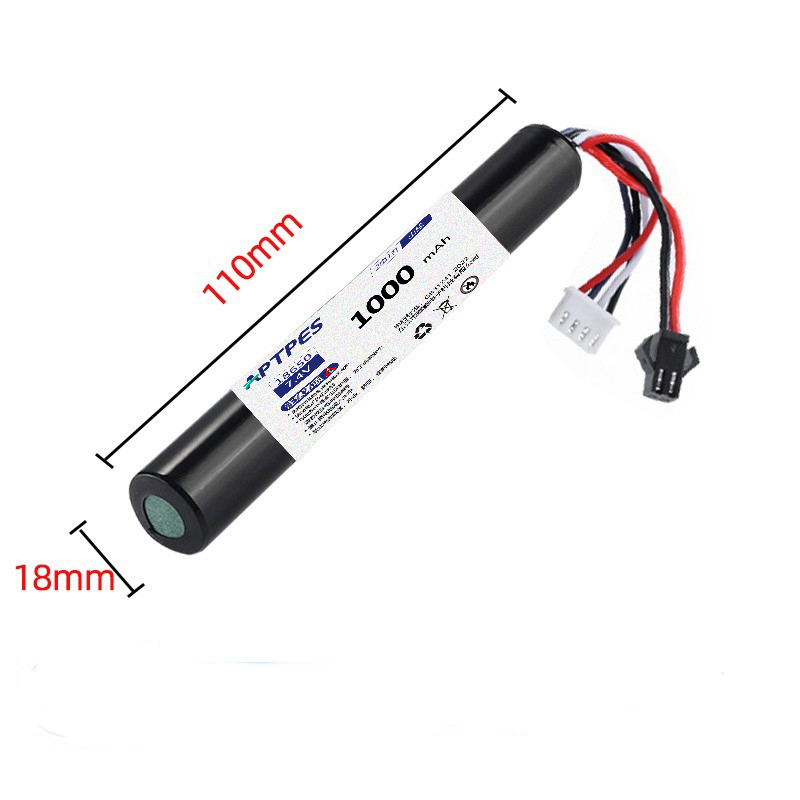

| Finished Product Dimensions: | Φ18mm × 110mm (Diameter × Length, including wire terminals, dimensional tolerance ±1mm) |
| Finished Product Weight: | Approximately 45g (including protection board and wires) |
| Charging Method: | Recommended to use a dedicated 7.4V lithium battery charger (CC/CV mode) |
| Protection Functions: | Overcharge, over-discharge, overcurrent, short-circuit protection |
| Wire Specifications: | Standard length approximately 80mm wires with pluggable terminals (specific terminal model can be customized) |
| Operating Temperature: | Charging: 0°C ~ +45°C / Discharging: -20°C ~ +60°C |
| Storage Temperature: | -20°C ~ +45°C (Recommended long-term storage at 30%-50% charge) |
This strictly calibrated battery pack, defined by its highly restricted physical size, stable 7.4V voltage platform, and moderate 1000mAh capacity, serves as the primary energy core for a wide spectrum of specialized electronic devices and development projects. Its form factor allows it to slide easily into tubular housings, making it widely used in:

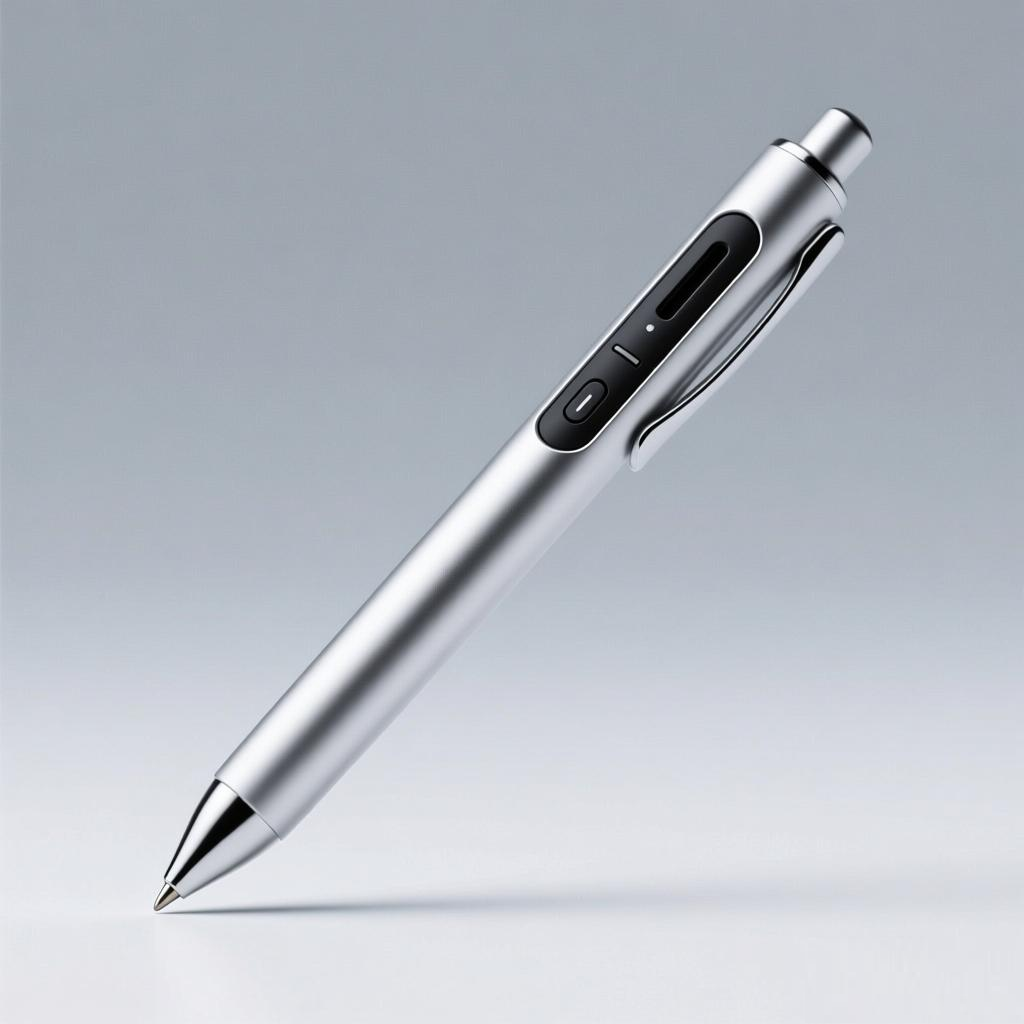

Portable Electronic Products: Provides sustained power for digital electronic styluses, handheld barcode scanners, miniature security cameras, outdoor surveying instruments, and advanced electronic dictionaries.
Smart Wearables and IoT Devices: Delivers reliable energy to premium Bluetooth communication headsets, smart monitoring bracelets, remote GPS tracking modules, and distributed wireless sensor nodes requiring long standby times.
Remote Control Models and Toys: Acts as an efficient power supply for miniature recreational drones, small-scale remote-controlled vehicles, and receiver modules in model aircraft systems.
Medical and Industrial Equipment: Integrated into portable gas or radiation detectors, miniature fluid pumps, and handheld precision measuring tools where weight reduction is critical for the operator.
Creative DIY and Maker Projects: Serves as a dependable energy source for robotic joint servo drives, compact LED lighting arrays, and custom mobile power cores for engineering prototypes.
To ensure maximum operational safety and prolong the functional life of your lithium-ion investment, please strictly adhere to the following technical guidelines. Comprehensive safety operation manuals and MSDS documents are available for download via our technical support portal.
Charging Requirements: Always use a dedicated lithium-ion battery charger with matching voltage and current parameters (8.4V). Do not use a non-regulated power supply for direct charging to prevent overcharging, thermal runaway, and potential electrical hazards.
Prohibitions: Do not throw the battery pack into fire, disassemble the outer wrap, crush, puncture it, or short-circuit the positive and negative terminals. Do not use the battery at excessively high temperatures (>60°C) or low temperatures (<0°C for charging, < -20°C for discharging).
Installation and Use: During physical installation into your device casing, avoid pulling or compressing the 80mm wires, and ensure secure, vibration-free terminal connections. The equipment design should provide adequate thermal ventilation space around the battery pack.
Storage and Transportation: When the host device is not in use for extended periods, keep the battery charge level balanced between 30% and 70% and store it in a cool, dry environment. During transportation, ensure proper physical insulation to prevent accidental terminal short circuits.
Disposal: This product is manufactured as an environmentally friendly battery, but after its lifespan ends, do not dispose of it indiscriminately in standard waste streams. It must be recycled according to local environmental regulations and e-waste protocols.
A: Absolutely not. You must use a dedicated lithium-ion battery charger with an output voltage of 8.4V and a constant current/constant voltage (CC/CV) charging algorithm. Using a standard AC/DC adapter with an incompatible voltage will permanently damage the protection circuit board or cause severe overcharging, posing a direct risk of fire or explosion.
A: The protection board is designed as the last line of defense against catastrophic failure, not a daily operational switch. When the voltage drops to the over-discharge protection point (approximately 6.0V), the protection board will cut off the output to protect the battery cells. However, frequently triggering this hardware protection will degrade the battery chemistry and shorten its life. It is highly recommended that your device features a software-level low-voltage alarm or shutdown function to stop usage and prompt a recharge when the voltage drops to approximately 6.6V (3.3V per cell).
A: In principle, it is strictly not recommended to directly connect multiple finished battery packs in parallel on your own. Even if they are the exact same model from the same batch, there may be slight differences in their internal state, resting voltage, and internal resistance. Direct parallel connection under these conditions may cause circulating currents between the packs, negatively affecting performance and safety. If your project requires a larger capacity, please utilize our customization services to order a factory-balanced 2-series multi-parallel (2SXP) battery pack.
A: It is perfectly sufficient for continuous operation. Your device's standard operating current (800mA) is less than the battery's maximum continuous discharge current rating (1000mA), which keeps the thermal generation within the safe operational range. However, please analyze your device's startup or pulse power requirements to ensure that the instantaneous peak current does not exceed the overcurrent protection threshold of the built-in protection board (which is calibrated and usually set at around 2A).
A: The dimensions listed in the technical specifications table (Φ18mm × 110mm) refer strictly to the maximum external dimensions of the shrink-wrapped battery cell body. The flexible connecting wires (measuring approximately 80mm long) and the rigid plastic terminals are not included in this dimensional measurement. When engineering the internal battery compartment for your hardware, you must reserve extra physical space to safely route and house the wires without pinching them.
Important Note: This 7.4V 1000mAh module is a standardized industrial component sourced directly from our advanced manufacturing facility. By eliminating intermediaries, we provide highly competitive tiered pricing structures for volume commercial procurement, alongside flexible Minimum Order Quantities (MOQs) and strictly managed lead times to keep your production lines running smoothly.
We understand that different micro-devices have unique structural constraints and power demands. Therefore, we offer comprehensive OEM/ODM customization services. Our dedicated engineering team can modify wire lengths, swap terminal connector models, adjust cell capacities, or recalibrate the protection board parameters to perfectly match your proprietary hardware. From initial product selection and technical specification documentation to final integration testing and standard warranty coverage, our technical support team is ready to assist you throughout the entire product lifecycle. Please choose carefully according to your device requirements, and feel free to inquire about our customized engineering solutions.
